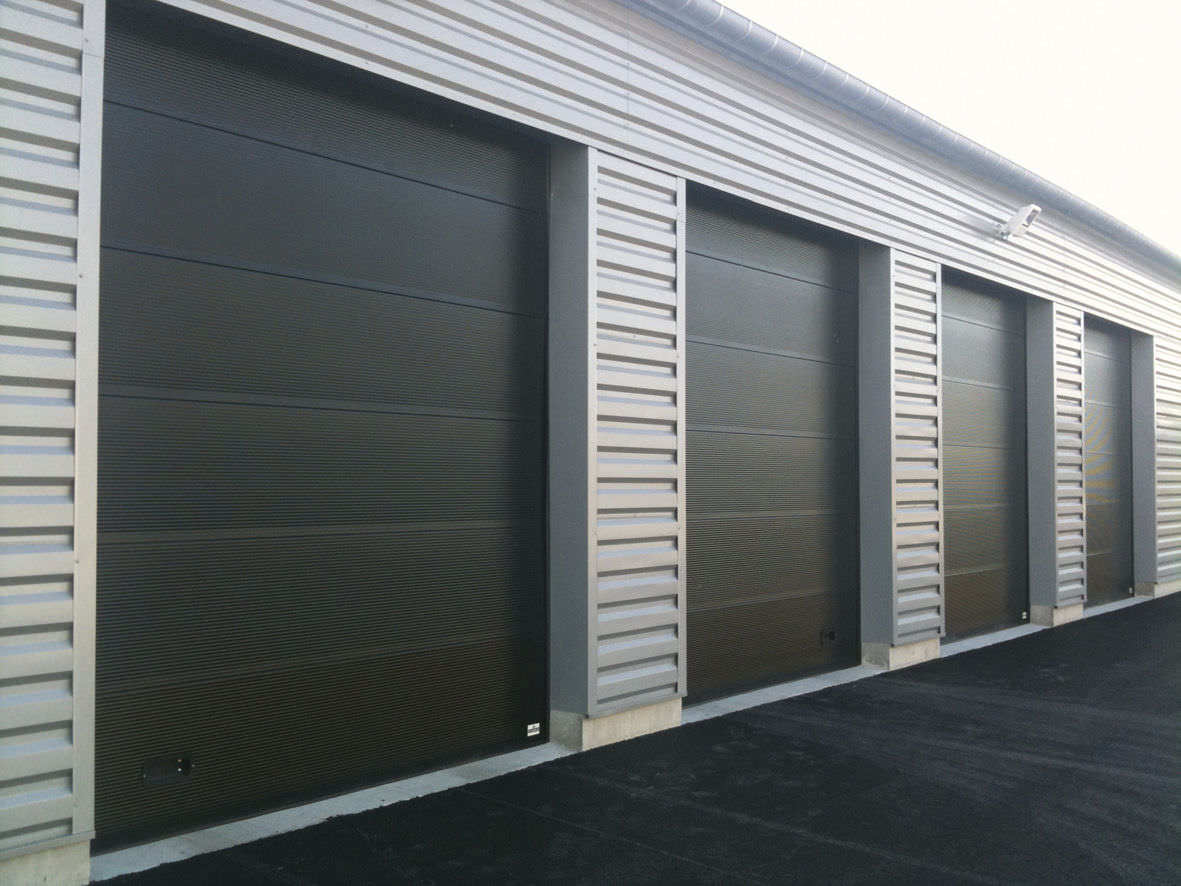

What Are the Advantages of Industrial Sectional Doors?

Where Industrial Sectional Doors Save Space

Industrial sectional doors lift along tracks instead of swinging into the yard. This leaves the approach available for loading operations, but the open door still occupies space above or behind the opening. Check the travel path against roof beams, lighting, sprinklers and maintenance access before choosing the track arrangement.

Choose the Lift Arrangement from a Drawing

Request a dimensioned layout showing headroom, side room, track projection, drive position and final clear opening. A large structural opening does not automatically provide the same usable passage after installation.

• Standard lift: check the horizontal tracks and the ceiling area behind the lintel.
• High lift: confirm how far the door rises before turning toward the ceiling.
• Vertical lift: confirm that sufficient unobstructed height exists above the opening.

Compare Insulation and Sealing Together

Insulated sandwich panels can be useful at a heated warehouse entrance. Compare the proposed complete door, including panel joints, perimeter seals, glazing and any pedestrian door. Panel insulation alone does not describe the heat loss or air leakage of the installed assembly. Ask which configuration the performance data actually covers.

Use Windows and Pedestrian Access Purposefully

Vision panels can improve visibility near the opening. A wicket door may reduce full-door openings for staff, but its threshold, closing device and interlock need review. Prefer separate pedestrian routes where practical, and do not assume a wicket door satisfies emergency-egress requirements without project approval.

Match the Door to the Loading Routine

For a loading bay used mainly when trucks arrive, a sectional door can provide a substantial exterior closure. For an internal passage with repeated forklift movements, compare a high-speed door as well. Give suppliers peak cycles per hour and time held open, rather than selecting only by advertised speed or panel thickness.

What to Include in a Sectional Door Enquiry

• Measurements: clear width and height, headroom, side room, roof profile and photographs of both sides.
• Conditions: vehicle and load dimensions, traffic peaks, temperature difference, wind exposure and power supply.
• Scope: drive, protective devices, glazing, seals, mounting support, installation and spare-parts availability.

Check Handover and Future Maintenance

Agree an acceptance checklist before ordering: final passage size, smooth travel, protective functions, power-failure operation and operator training. Request the installed configuration's manual and service schedule. Spring and cable work should follow the manufacturer's instructions and be performed by competent personnel; budget for inspections and replacement wear parts.
