Product Introduction
Sponge door seal for industrial sectional door openings, with polyethylene fiber cloth and an aluminum support frame. The product range includes mechanical, sponge and inflatable sealing arrangements. Match the shelter to the loading opening and vehicle dimensions.
Product Description
The dock shelter range is designed to seal the gap between a docked vehicle and the warehouse opening. Polyethylene fiber curtains and an aluminum frame are listed, with configurations for different loading bay arrangements.
Specification
Dock shelter range parameters
| Model | Mechanical，spongy and Inflatable for choice |
|---|---|
| Main material | high-quality polyethylene fiber and aluminum frame |
| Color | black |
| Cloth thickness | 0.8mm |
| Feature | high seal, generally matched with industrial sectional doors |
| Tear strength | 600N |
| Peel strength | 2.5（N/mm） |
| Tensile strength | 200（N/mm） |
| Weight | About 3.4kg/m2 |
| Working condition | -40℃ to 70℃ |
| Warranty | 3years |
| Package | Export standard |
Details Images

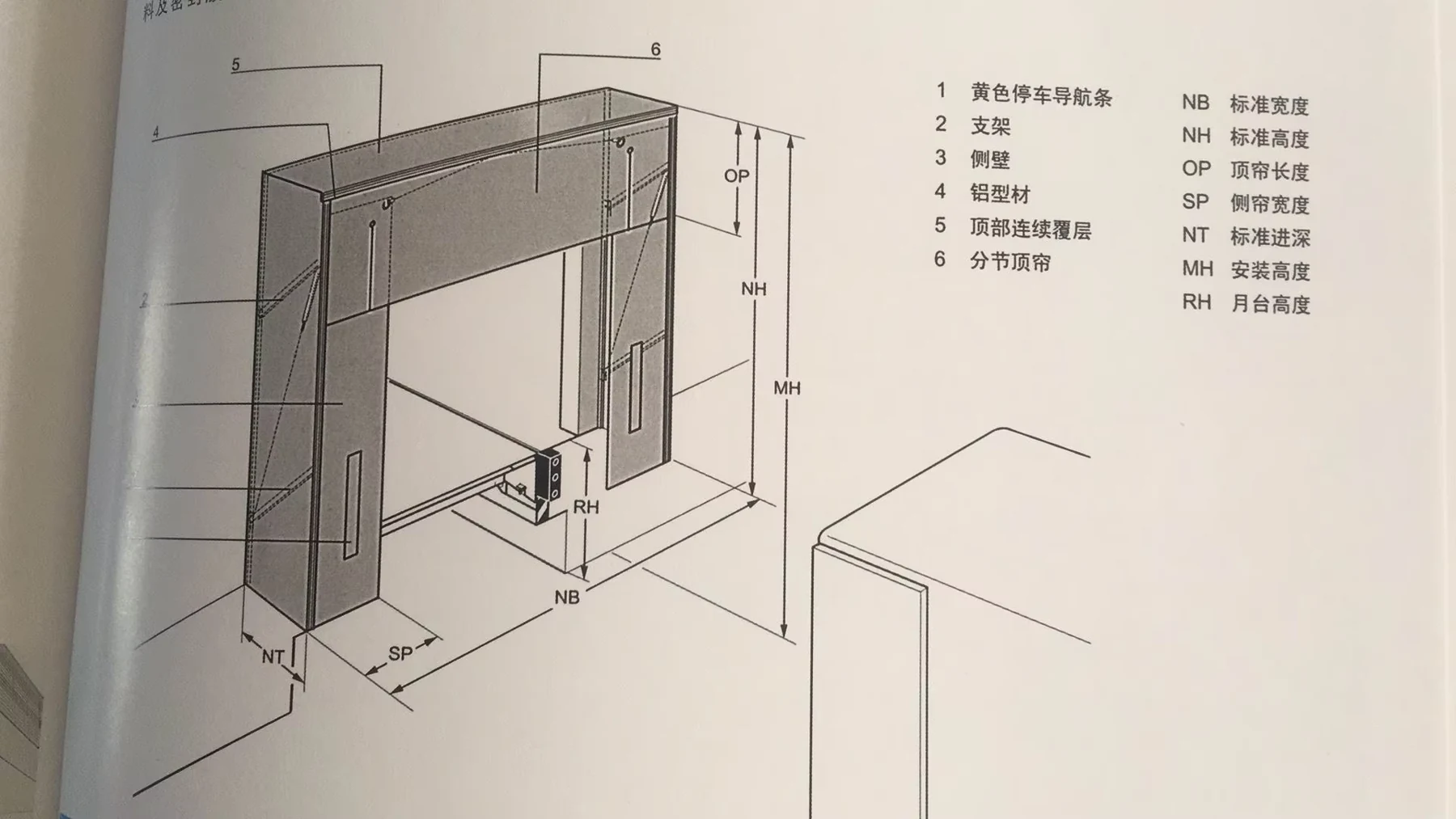

Dock shelter dimensions and frame
Product packaging
| Packaging | Export standard | LCL packaging | Plywood case |
|---|---|---|---|
| FCL packaging | Strong carton | Color | Black |
Customization options
- Mechanical, sponge and inflatable sealing options
- Dimensions selected to suit the loading bay and vehicle
- OEM customization available
FAQ
Which dock sealing arrangements are available?
The listed range includes mechanical, sponge and inflatable options. Confirm the opening and vehicle dimensions when choosing a configuration.
Can the shelter be matched to a sectional door?
The product range is generally matched with industrial sectional doors at warehouse and workshop loading bays.
How is the product packed?
Export packing is available. LCL shipments use plywood cases; the applicable FCL packing is shown in the packaging table.
