Product Introduction
This hydraulic dock leveler connects the warehouse loading bay to a vehicle deck. The listed configurations use an 8 mm main plate, a 750 W hydraulic unit and two protective bumpers.
Product Description
The steel platform and hydraulic lifting system support loading and unloading at industrial dock openings. The source range offers 2000 × 2000 × 600 mm and 2500 × 2000 × 600 mm platforms, with load capacity selected for the application.
Specification
Dock leveler parameters
| Main material | high quality powder coated galvanized steel |
|---|---|
| Color | customized，black，blue ，green etc. |
| Main plate thickness | 8mm |
| Size | 2000*2000*600mm or 2500*2000*600mm |
| Loading weight | 6tons，8tons，10tons for choice |
| Power | 750W |
| Hydraulic oil working pressure | 8Mpa ±1Mpa |
| Hurdraulic oil volume | 6L |
| Working condition | -20℃~+50℃ |
| Frequency | 20 thousands times |
| Bumper | Included，2PCS/SET,300*200*100mm |
| Warranty | 3years |
| Package | Exporting standard |
Details Images

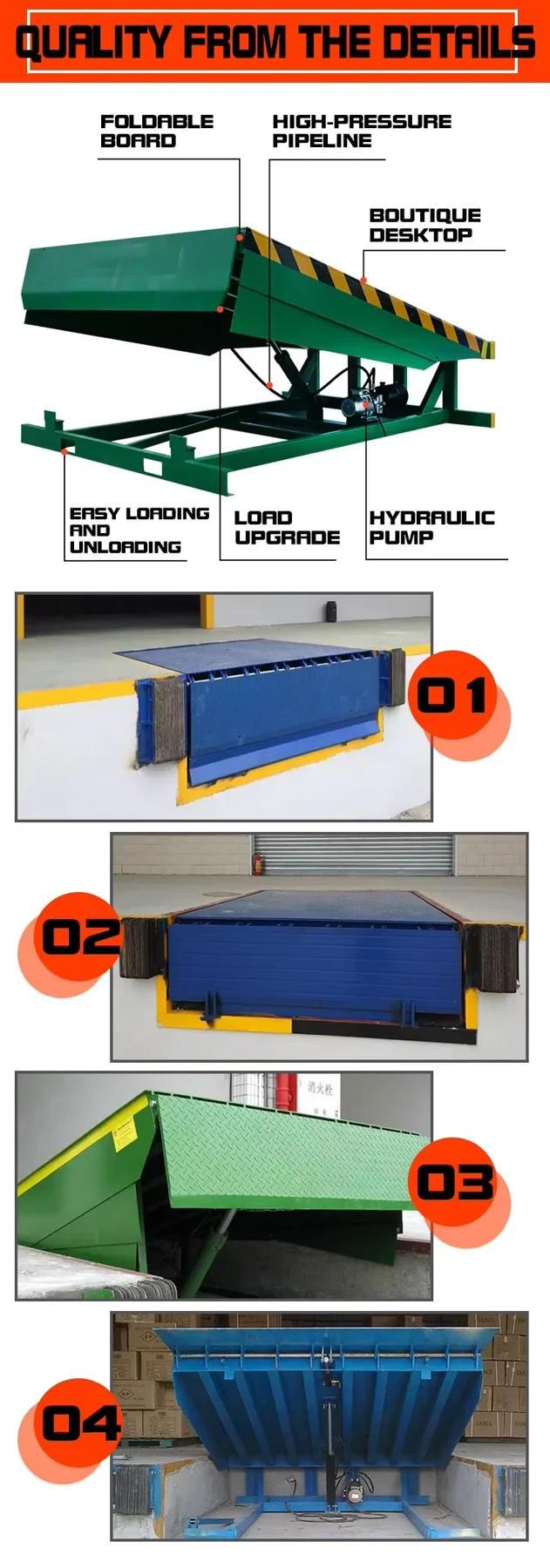

Construction details

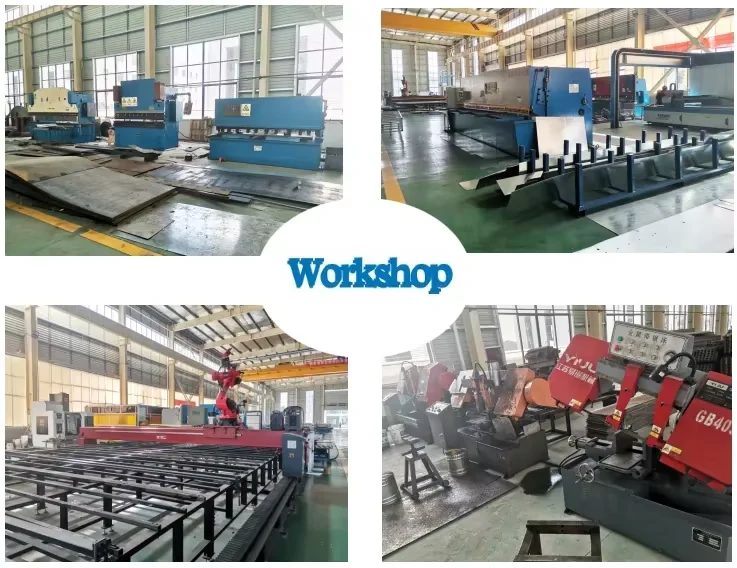

Production workshop
Application scenes
Product packaging
| Packaging | Export standard |
|---|
Customization options
- 6, 8 and 10 ton capacity options
- 2000 × 2000 × 600 mm or 2500 × 2000 × 600 mm platform sizes
- Customized colors including black, blue and green
FAQ
Which load capacities are listed?
The product range offers 6, 8 and 10 ton configurations. Specify the required capacity when requesting a quotation.
Which platform sizes are available?
The specification lists 2000 × 2000 × 600 mm and 2500 × 2000 × 600 mm sizes.
What information is needed for a quotation?
Send the platform size, load capacity, loading bay measurements, vehicle deck heights, quantity and destination.
