High speed door servo motor, reducer and control box

High Speed Door Servo Motor with Reducer and Controller

Permanent magnet AC synchronous servo motor, reducer and controller set for high speed industrial doors, available in 750W and 1500W configurations.

Applications

  • Warehouse high speed doors
  • Industrial fast door drive systems
Get QuoteView Specifications

Key attributes

ApplicationWarehouseProduct nameServo motor
Motor typePermanent magnet AC synchronous servo motorDesign styleIndustrial
Rated power0.75 kW / 1.5 kWSpeed2000 rpm
Rated maximum torque80–160 NmOperating temperature range−35°C to 60°C
Maximum door area≤30 m²Manual releaseHand crank
Rated power supplyAC 220 V ±10%Net motor weight10 kg
Net control box weight7.5 kgPlace of originChina
Surface finishingFinishedProject solution capabilityTotal solution for projects
After-sale serviceReturn and replacement, onsite inspection, online technical supportDoor material (source listing)Aluminum alloy

Product Introduction

This high speed door drive set combines a permanent magnet AC synchronous servo motor, reducer and control box. The source listing specifies 750W and 1500W versions, a rated speed of 2000 rpm, absolute encoder limits and a hand crank for manual release. Select the configuration to suit the door area and required torque.

Product Description

High Speed Door Fast Door Servo Motor Permanent Magnet AC-Synchronous Servo Motor with Reducer and Controller

The listed drive set includes the servo motor, reducer and controller. Available power ratings are 0.75 kW and 1.5 kW.

Warehouse high speed door
Warehouse high speed door
PVC high speed rolling door
PVC high speed rolling door

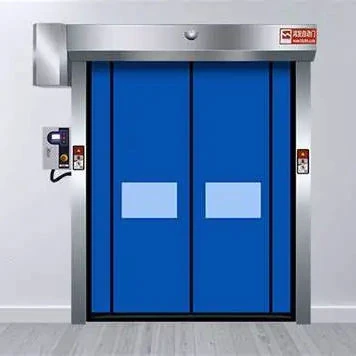

High speed door with servo drive
High speed door with servo drive

Specification

Motor parameters

Parameter750 W model1500 W model
Rated output750 W: 750 W1500 W: 1500 W
Speed750 W: 2000 rpm1500 W: 2000 rpm
Rated maximum torque750 W: 80 Nm1500 W: 160 Nm
Temperature rise750 W: <30°C1500 W: <30°C
Operating temperature range750 W: −35°C to 60°C1500 W: −35°C to 60°C
Torque management system750 W: Torque servo system1500 W: Torque servo system
Maximum operating area750 W: <16 m²1500 W: <30 m²
Limit mode750 W: Absolute encoder1500 W: Absolute encoder
Manual release750 W: Hand crank1500 W: Hand crank
Weight750 W: 10 kg1500 W: 10 kg

Control box parameters

Rated power supplyAC 220 V ±10%
Power configurations750 W / 1500 W
Net control box weight7.5 kg

Details Images

Motor and control box options

High Speed Door Servo Motor with Reducer and Controller — Motor and control box options

Control box dimensions

High Speed Door Servo Motor with Reducer and Controller — Control box dimensions

Servo control box

High Speed Door Servo Motor with Reducer and Controller — Servo control box

Activation and safety devices

High Speed Door Servo Motor with Reducer and Controller — Activation and safety devices

Push button operation

High Speed Door Servo Motor with Reducer and Controller — Push button operation

Automatic sensor operation

High Speed Door Servo Motor with Reducer and Controller — Automatic sensor operation

Access control operation

High Speed Door Servo Motor with Reducer and Controller — Access control operation

Product packaging

LCL shipment — plywood case
LCL shipment — plywood case
FCL shipment — strong carton
FCL shipment — strong carton
LCL packagingPlywood case
FCL packagingStrong carton
Port of dispatchShanghai / Ningbo
Selling unitSingle item
Supply ability200 sets per month

Customization options

  • Customized logo — minimum order 200 sets
  • Customized packaging — minimum order 200 sets
  • Graphic customization — minimum order 200 sets

FAQ

Which power and torque options are available?

The source specification lists a 750 W version with 80 Nm rated maximum torque and a 1500 W version with 160 Nm. Both list a speed of 2000 rpm.

How is the door released manually?

The listed manual release method is a hand crank. The limit mode uses an absolute encoder.

What information is needed for a quotation?

Please provide the door type, door area, required power and torque, supply voltage, quantity and destination country. For a replacement drive, include the existing motor and controller nameplate details.
