Product Introduction
Servo motor and controller for automatic sensor operated high speed doors, with closed loop speed and position control. The listed configurations run at 2000 rpm and use a hand crank for manual release. Select the drive according to the door area and required torque.
Product Description

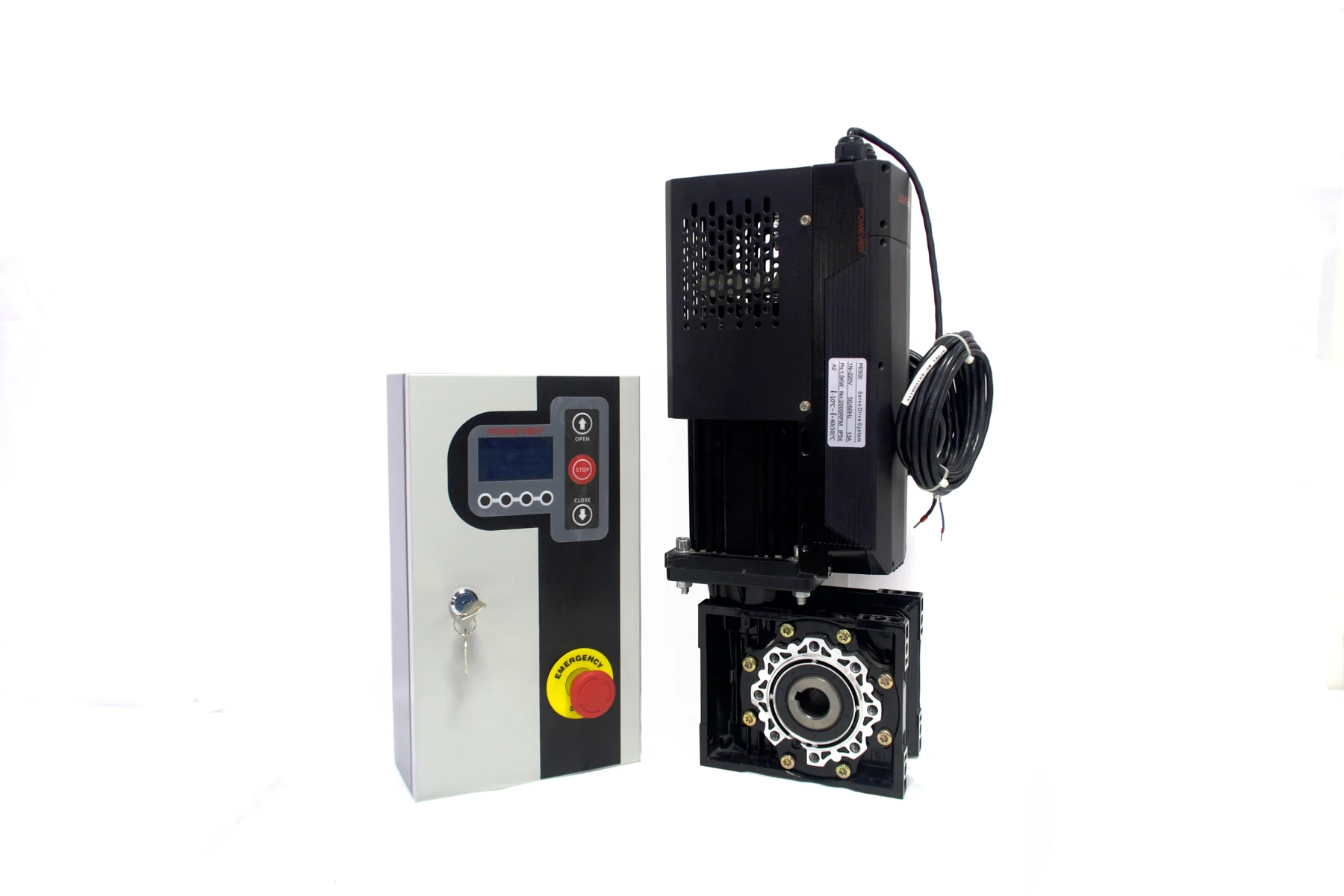

The drive combines a servo motor, reducer and control box. The listing offers 750 W and 1500 W models, torque servo management and absolute encoder limits, with push button, sensor and access control activation options.
Specification
Motor parameters
| Parameter | 750 W model | 1500 W model |
|---|---|---|
| Rated Output | 750W | 1500W |
| Speed | 2000 rpm | 2000 rpm Rated |
| Rated Maximum Torque | 80 Nm | 160 Nm |
| Heating Rate | ＜30℃ | ＜30℃ |
| Operating Temperature Range | -35℃-60℃ | -35℃-60℃ |
| Torque Management System | Torque Servo System | Torque Servo System |
| Maximum Operating Area | ＜16 ㎡ | ＜30 ㎡ |
| Limit Mode | Absolute Encoder | Absolute Encoder |
| Manual release | Hand Crank | Hand Crank |
| Weight | 10kg | 10kg |

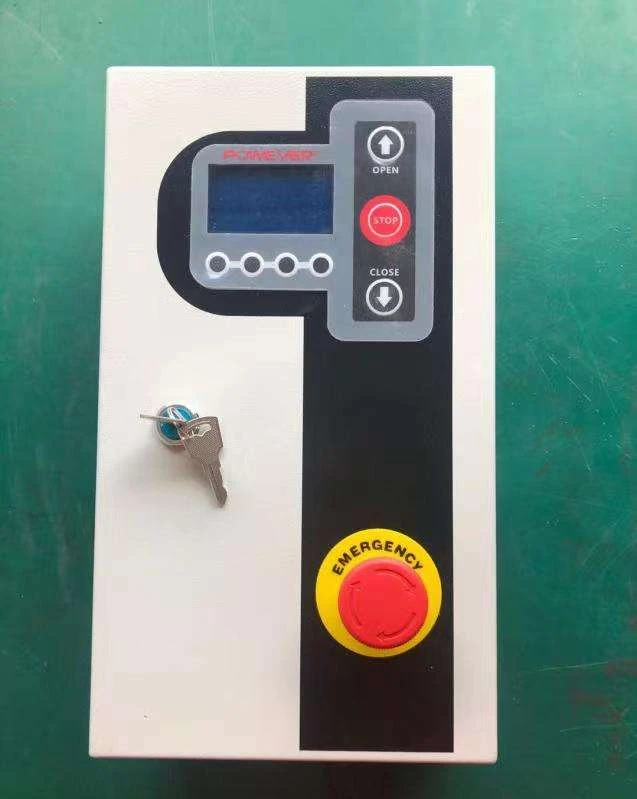

Control box parameters
| Rated power supply | AC 220 V ±10% |
|---|---|
| Rated voltage | 220 V |
| Speed control | Closed loop speed control |
| Position control | Closed loop position control |
| Protection | Overcurrent, overvoltage, undervoltage, overheating and overloading |
| Installation | Wall mounted; indoor |
| Installation site | Keep away from direct sunlight, dust, corrosive gas, oil mist and water vapor |
| Operating temperature range | −35°C to 60°C |
| Control box weight | 7.5 kg |
| Self-locking mode | Electromechanical brake |
Details Images

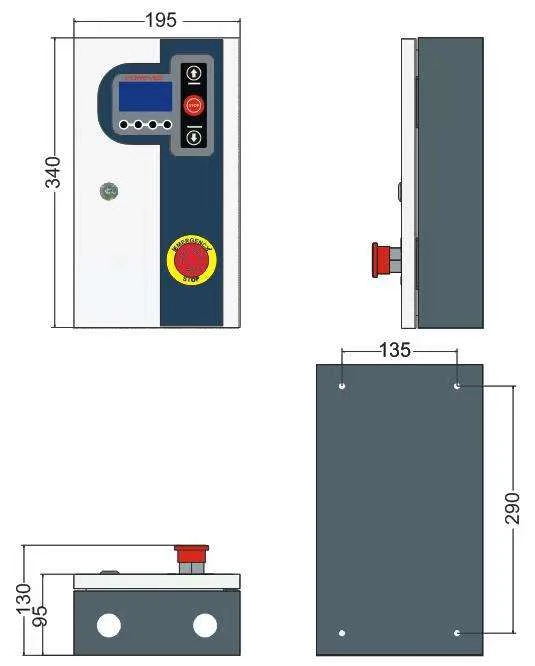

Control box drawing

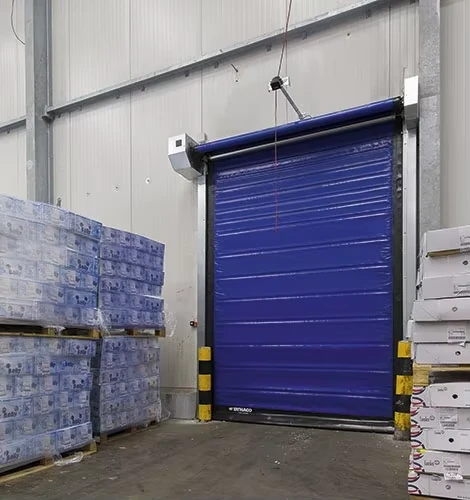

Door applications

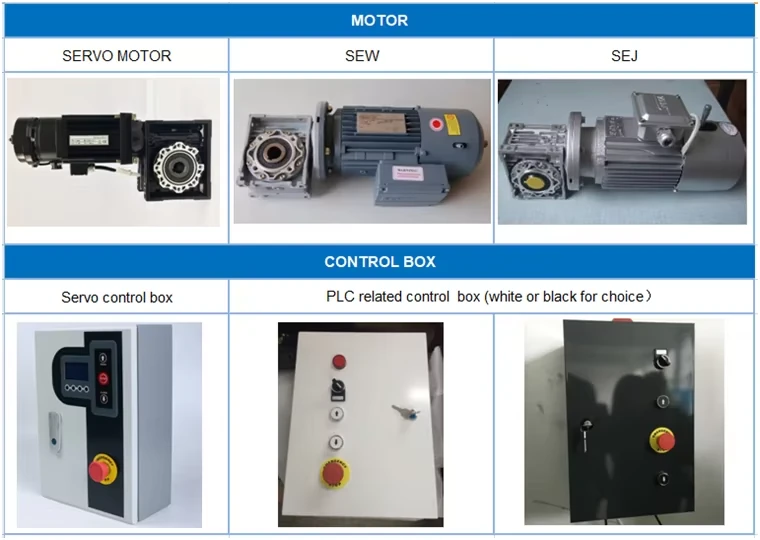

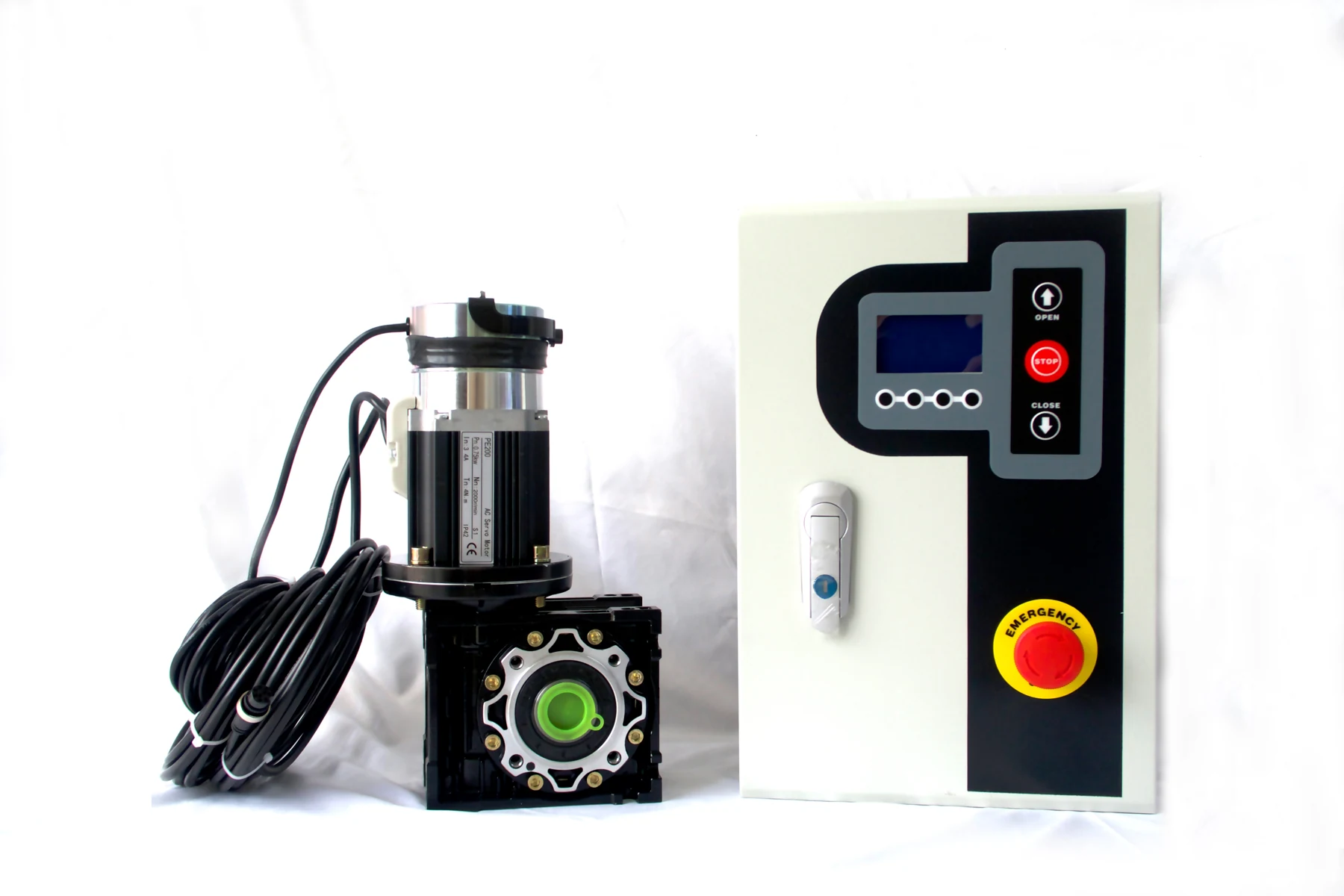

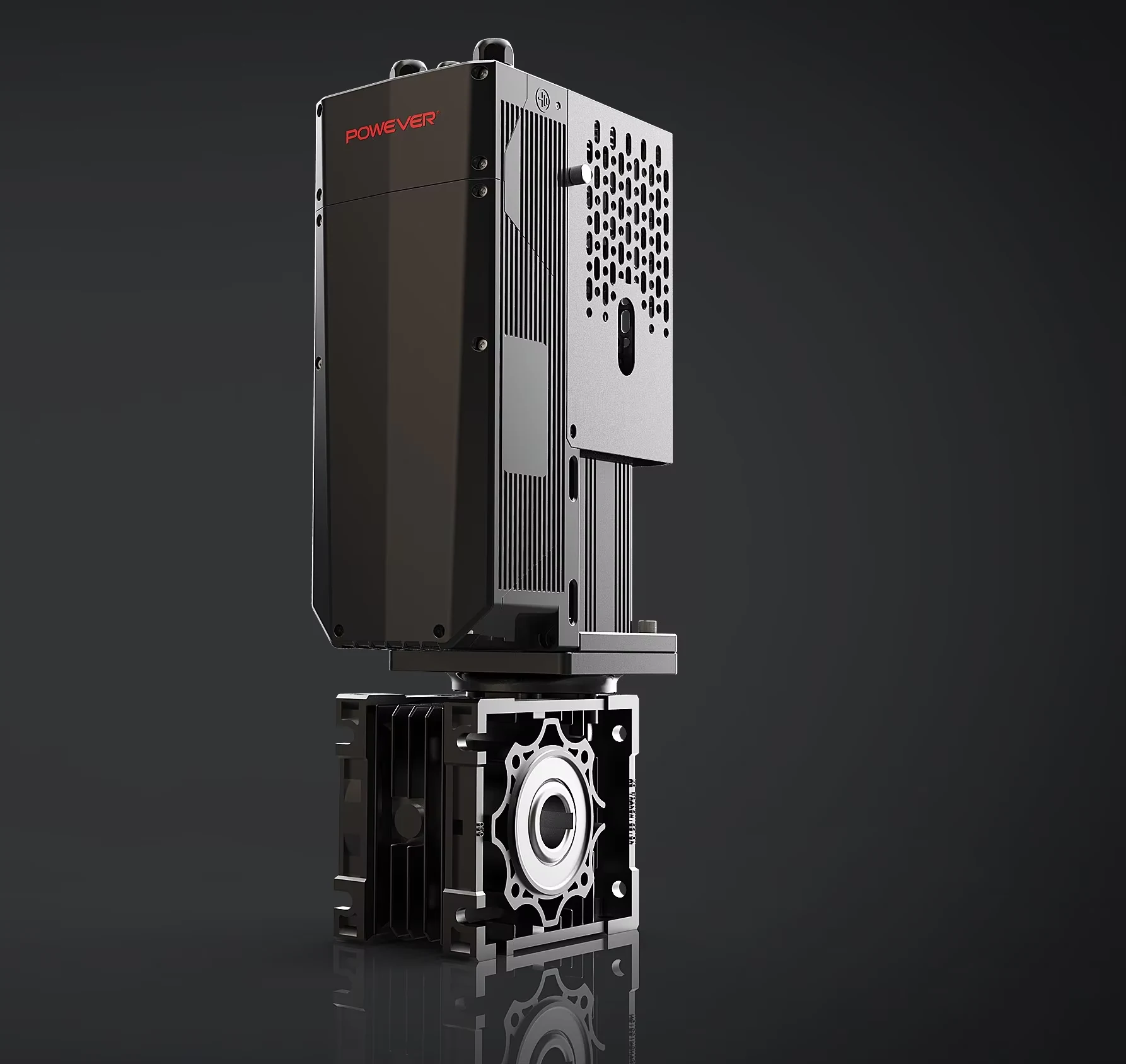

Motor and controller options

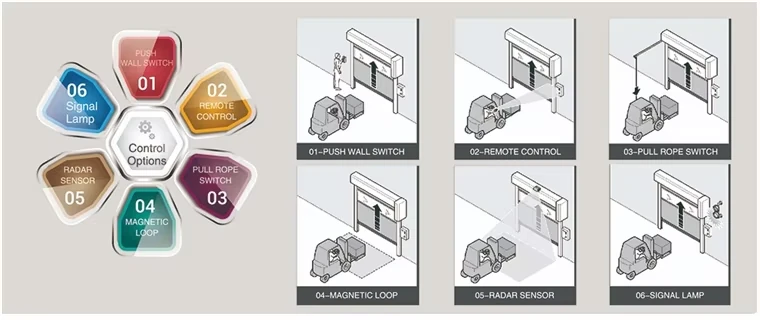

Activation and safety devices
Operation sequence

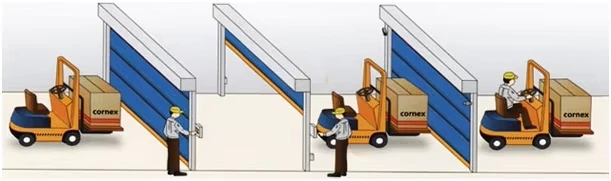

Manual push button operation

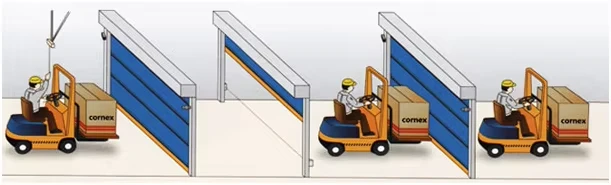

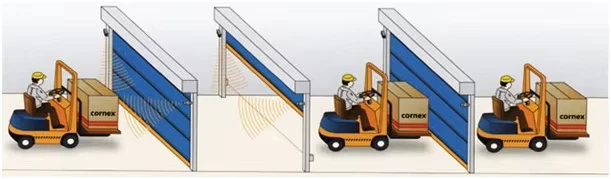

Automatic sensor operation
Product packaging
| LCL packaging | Plywood case | FCL packaging | Bubble film and carton |
|---|---|---|---|
| Lead time, 1–5 sets | 10 days | Lead time, 6–30 sets | 25 days |
| Lead time, 31–100 sets | 35 days | More than 100 sets | By agreement |
Customization options
- 750 W and 1500 W drive configurations
- Motor and control box options
- Push button, radar, loop detector, light curtain, pull cord, magnetic card and remote control options
FAQ
Can the product be customized?
OEM customization is available. Send your required dimensions, configuration and quantity for confirmation.
Is installation support available?
Installation manuals, videos and technical support are available. Ask about on-site assistance for your project.
How is the product packed for shipment?
Packaging depends on the product and shipping method. Plywood cases are used for LCL shipments; FCL packaging is specified in the packing table.
