Product Introduction
The Industrial Flame Retardant High Speed PVC Door provides fast automatic operation with curtain material options suited for demanding production environments. It is a practical solution for plants that require frequent opening, controlled access, dust reduction and improved safety separation.
Product Description

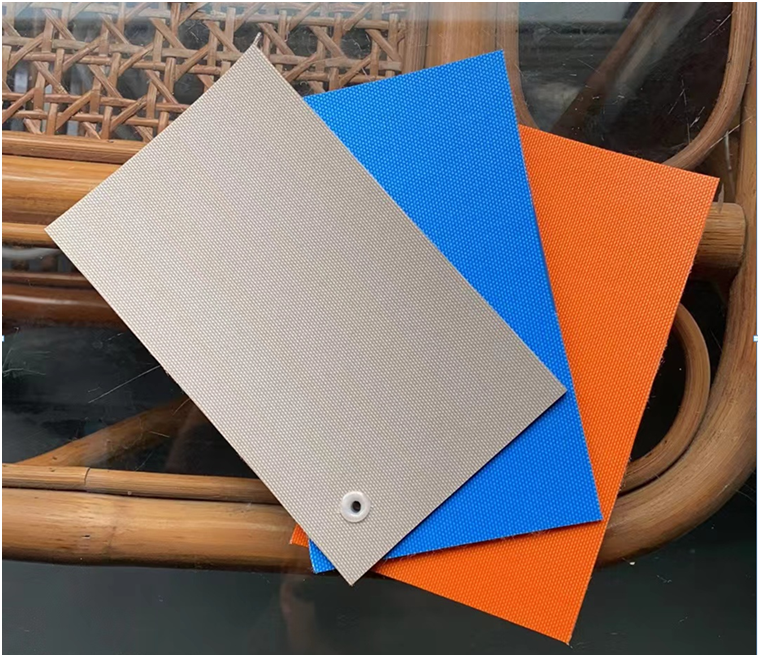

Curtain color for choice
Difference between this welding door and normal high speed door
Technical Specifications
| Door curtain | High density fabric cloth (strong, hard, flat, anti-spark,2.0mm thick) |
|---|---|
| Curtain color | Orange,blue,grey |
| Visual window（optional） | High quality PVC cloth（over 2.0mm） |
| Accessories | With whole set of high quality hardware |
| Door opener | Three kinds for choice: 1) Servo motor 0.75-1.5KW, 50-60HZ 2) SEW motor:0.75-2.2KW, 50-60HZ 3) SEJ motor:0.9-2.2KW, 50-60HZ |
| Running speed | 0.8-1.5m/s,can be adjustable |
| Sensors | Standard: photocell,radar,and push button Optional: loop detector, remote control, light curtain sensor, safety airbag, magnetic card, pull cord |
| Max size | W9000mm*H8000mm,If over this size, we can recommend our another flexible double layer high speed folding door |
| Working condition | -40℃ to 70℃ |
| Wind resistance | 60-80km/h, folding type has better windproof function |
| Application | Welding room, robot production line |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |
Details Images
Motor and control box
Control system for choice
Operation way and safety device
Manual mode: push button
press “up” button--door open--forklift go through--press “down”button--door close
Auto mode: radar, loop detector, light curtain sensor, etc
Semi-auto mode: pull cord, magnetic card, remote control
Packing & Delivery
Optional Configurations
- Flame retardant curtain
- Vision window
- Warning light
- Radar sensor
- Manual emergency chain
FAQ
Where is Industrial Flame Retardant High Speed PVC Door commonly used?
Industrial Flame Retardant High Speed PVC Door is commonly used for welding workshops, metal fabrication areas, industrial plants, maintenance bays where fast opening and controlled access are required.
What information is needed before quotation?
Please send opening width, opening height, quantity, application, operation preference, site photos if available and destination country.
